Page 16 - quarter turn

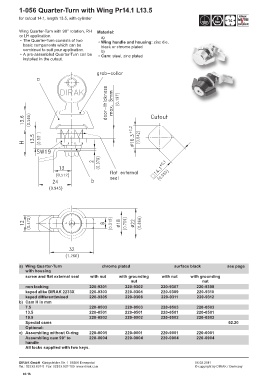

1-056 Quarter-Turn with Wing Pr14.1 L13.5

for cutout 14.1, length 13.5, with cylinder 5
Nm
Wing Quarter-Turn with 90° rotation, RH Material:
or LH application. a)
• The Quarter-Turn consists of two • Wing handle and housing: zinc die,
basic components which can be black or chrome plated
combined to suit your application. b)
• A pre-assembled Quarter-Turn can be • Cam: steel, zinc plated
installed in the cutout.

a) Wing Quarter-Turn chrome plated surface black see page
with housing
screw and flat external seal with nut with grounding with nut with grounding
nut nut
non locking 220-9301 220-9302 220-9307 220-9308
keyed alike DIRAK 2233X 220-9303 220-9304 220-9309 220-9310
keyed different/mixed 220-9305 220-9306 220-9311 220-9312
b) Cam H in mm
7.5 220-0503 220-0503 220-0503 220-0503
13.5 220-0501 220-0501 220-0501 220-0501
19.5 220-0502 220-0502 220-0502 220-0502
Special cams 02.20
Optional:
c) Assembling without O-ring 220-0001 220-0001 220-0001 220-0001
Assembling cam 90° to 220-0004 220-0004 220-0004 220-0004
handle
All locks supplied with two keys.

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.16
