Page 12 - quarter turn

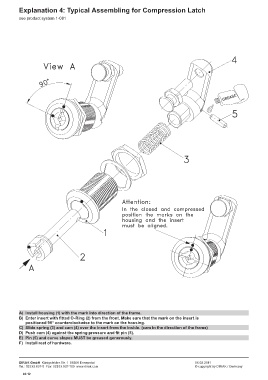

Explanation 4: Typical Assembling for Compression Latch

see product system 1-081

A) Install housing (1) with the mark into direction of the frame.
B) Enter insert with fitted O-Ring (2) from the front. Make sure that the mark on the insert is
positioned 90° counterclockwise to the mark on the housing.
C) Slide spring (3) and cam (4) over the insert from the inside. (cam in the direction of the frame)
D) Push cam (4) against the spring pressure and fit pin (5).
E) Pin (5) and curve slopes MUST be greased generously.
F) Install rest of hardware.
