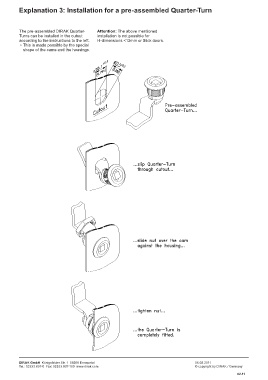

Explanation 3: Installation for a pre-assembled Quarter-Turn
The pre-assembled DIRAK Quarter- Attention: The above mentioned
Turns can be installed in the cutout installation is not possible for
according to the instructions to the left. H-dimensions <13mm or thick doors.
• This is made possible by the special
shape of the cams and the housings.
