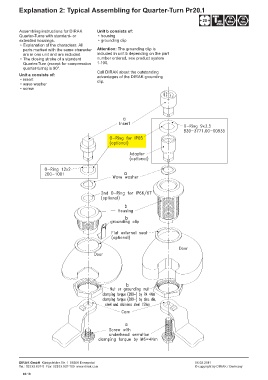

Explanation 2: Typical Assembling for Quarter-Turn Pr20.1

PA 15
M6 4Nm Nm
4Nm
Assembling instructions for DIRAK Unit b consists of:
Quarter-Turns with standard- or • housing
extended housings. • grounding clip
• Explanation of the characters: All
parts marked with the same character Attention: The grounding clip is
are in one unit and are included. included in unit b depending on the part
• The closing stroke of a standard number ordered, see product system
Quarter-Turn (except for compression 1-100.
quarter-turns) is 90°.
Call DIRAK about the outstanding
Unit a consists of: advantages of the DIRAK grounding
• insert clip.
• wave washer
• screw
