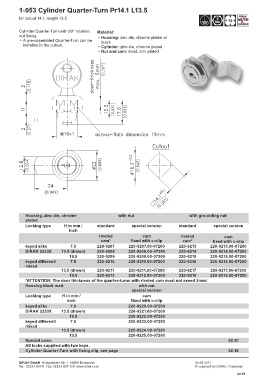

1-053 Cylinder Quarter-Turn Pr14.1 L13.5

for cutout 14.1, length 13.5 5
Nm
Cylinder Quarter-Turn with 90° rotation, Material:
nut fixing. • Housing: zinc die, chrome plated or
• A pre-assembled Quarter-Turn can be black
installed in the cutout. • Cylinder: zinc die, chrome plated
• Nut and cam: steel, zinc plated

Housing, zinc die, chrome with nut with grounding nut
plated
Locking type H in mm / standard special version standard special version
inch
riveted cam riveted cam
cam* fixed with c-clip cam* fixed with c-clip
keyed alike 7.5 220-9207 220-9207.00-07200 220-9213 220-9213.00-07200
DIRAK 2233X 13.5 (drawn) 220-9208 220-9208.00-07200 220-9214 220-9214.00-07200
19.5 220-9209 220-9209.00-07200 220-9215 220-9215.00-07200
keyed different/ 7.5 220-9210 220-9210.00-07200 220-9216 220-9216.00-07200
mixed
13.5 (drawn) 220-9211 220-9211.00-07200 220-9217 220-9217.00-07200
19.5 220-9212 220-9212.00-07200 220-9218 220-9218.00-07200
*ATTENTION: The door thickness of the quarter-turns with riveted cam must not exeed 3mm!
Housing black matt with nut
special version
Locking type H in mm / cam
inch fixed with c-clip
keyed alike 7.5 220-9220.00-07200
DIRAK 2233X 13.5 (drawn) 220-9221.00-07200
19.5 220-9222.00-07200
keyed different/ 7.5 220-9223.00-07200
mixed
13.5 (drawn) 220-9224.00-07200
19.5 220-9225.00-07200
Special cams 02.20
All locks supplied with two keys.
Cylinder Quarter-Turn with fixing clip, see page 02.18

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.15
