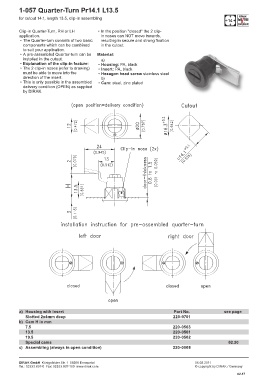

1-057 Quarter-Turn Pr14.1 L13.5

for cutout 14.1, length 13.5, clip-in assembling

Clip-in Quarter-Turn, RH or LH • In the position "closed" the 2 clip-
application. in noses can NOT move inwards,
• The Quarter-turn consists of two basic resulting in secure and strong fixation
components which can be combined in the cutout.
to suit your application.
• A pre-assembled Quarter-turn can be Material:
installed in the cutout. a)
• Explanation of the clip-in feature: • Housing: PA, black
• The 2 clip-in noses (refer to drawing) • Insert: PA, black
must be able to move into the • Hexagon head screw stainless steel
direction of the insert. b)
• This is only possible in the assembled • Cam: steel, zinc plated
delivery condition (OPEN) as supplied
by DIRAK.

a) Housing with insert Part No. see page
Slotted 2x4mm deep 220-9701
b) Cam H in mm
7.5 220-0503
13.5 220-0501
19.5 220-0502
Special cams 02.20
c) Assembling (always in open condition) 220-0008
