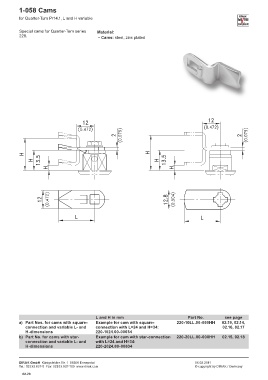

1-058 Cams

for Quarter-Turn Pr14.1, L and H variable

Special cams for Quarter-Turn series Material:
220. • Cams: steel, zinc plated

L and H in mm Part No. see page
a) Part Nos. for cams with square- Example for cam with square- 220-10LL.00-000HH 02.19, 02.14,
connection and variable L- and connection with L=24 and H=34: 02.16, 02.17
H-dimensions 220-1024.00-00034
b) Part No. for cams with star- Example for cam with star-connection 220-20LL.00-000HH 02.15, 02.18
connection and variable L- and with L=24 and H=34:
H-dimensions 220-2024.00-00034
