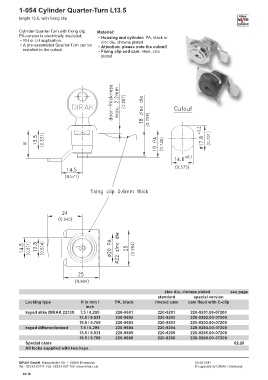

1-054 Cylinder Quarter-Turn L13.5

length 13.5, with fixing clip

Cylinder Quarter-Turn with fixing clip. Material:
PA-version is electrically insulated. • Housing and cylinder: PA, black or
• RH or LH application. zinc die, chrome plated
• A pre-assembled Quarter-Turn can be • Attention: please note the cutout!
installed in the cutout. • Fixing clip and cam: steel, zinc
plated

zinc die, chrome plated see page
standard special version
Locking type H in mm / PA, black riveted cam cam fixed with C-clip
inch
keyed alike DIRAK 2233X 7.5 / 0.295 220-9601 220-9201 220-9201.00-07200
13.5 / 0.531 220-9602 220-9202 220-9202.00-07200
19.5 / 0.768 220-9603 220-9203 220-9203.00-07200
keyed different/mixed 7.5 / 0.295 220-9604 220-9204 220-9204.00-07200
13.5 / 0.531 220-9605 220-9205 220-9205.00-07200
19.5 / 0.768 220-9606 220-9206 220-9206.00-07200
Special cams 02.20
All locks supplied with two keys.
