Page 14 - quarter turn

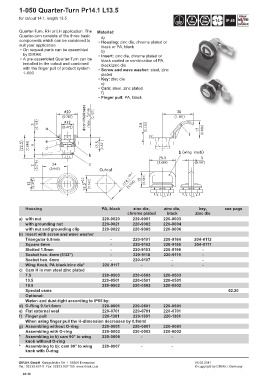

1-050 Quarter-Turn Pr14.1 L13.5

for cutout 14.1, length 13.5 5 PA
Nm 2Nm
Quarter-Turn, RH or LH application. The Material:
Quarter-turn consists of the three basic a)
components which can be combined to • Housing: zinc die, chrome plated or
suit your application. black or PA, black
• On request parts can be assembled b)
by DIRAK. • Insert: zinc die, chrome plated or
• A pre-assembled Quarter-Turn can be black coated or combination of PA,
installed in the cutout and combined black/zinc die
with the finger pull of product system • Screw and wave washer: steel, zinc
1-060. plated
• Key: zinc die
c)
• Cam: steel, zinc plated
f)
• Finger pull: PA, black

Housing PA, black zinc die, zinc die, key, see page
chrome plated black zinc die
a) with nut 220-9020 220-9001 220-9003
with grounding nut 220-9021 220-9002 220-9004
with nut and grounding clip 220-9022 220-9005 220-9006
b) Insert with screw and wave washer
Triangular 6.5mm - 220-9101 220-9104 204-0112
Square 6mm - 220-9102 220-9105 204-0111
Slotted 1.5mm - 220-9103 220-9106 -
Socket hex. 4mm (5/32") - 220-9118 220-9119 -
Socket hex. 6mm - 220-9107 - -
Wing Knob, PA black/zinc die* 220-9117 - - -
c) Cam H in mm steel zinc plated
7.5 220-0503 220-0503 220-0503
13.5 220-0501 220-0501 220-0501
19.5 220-0502 220-0502 220-0502
Special cams 02.20
Optional:
Water- and dust-tight according to IP65 by:
d) O-Ring 9.1x1.6mm 220-0601 220-0601 220-0601
e) Flat external seal 220-0701 220-0701 220-0701
f) Finger pull 220-1301 220-1301 220-1301
When using finger pull the H-dimension decreases by 0.8mm!
g) Assembling without O-ring 220-0001 220-0001 220-0001
Assembling with O-ring 220-0002 220-0002 220-0002
* Assembling to b) cam 90° to wing 220-0006 - -
knob without O-ring
* Assembling to b): cam 90° to wing 220-0007 - -
knob with O-ring

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.14
