Page 23 - quarter turn

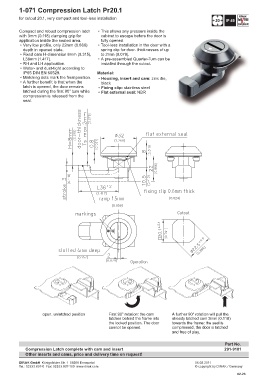

1-071 Compression Latch Pr20.1

for cutout 20.1, very compact and tool-less installation

Compact and robust compression latch • This allows any pressure inside the
with 3mm (0.118) clamping grip for cabinet to escape before the door is
application inside the sealed area. fully opened.
• Very low profile, only 22mm (0.866) • Tool-less installation in the door with a
depth in opened state. spring clip for door- thicknesses of up
• Fixed cam H-dimension 8mm (0.315), to 2mm (0.079).
L36mm (1.417). • A pre-assembled Quarter-Turn can be
• RH and LH application. installed through the cutout.
• Water- and dust-tight according to
IP65 DIN EN 60529. Material:
• Matching dots mark the final position. • Housing, insert and cam: zinc die,
• A further benefit is that when the black
latch is opened, the door remains • Fixing clip: stainless steel
latched during the first 90° turn while • Flat external seal: NBR
compression is released from the
seal.

Part No.
Compression Latch complete with cam and insert 291-9101
Other inserts and cams, price and delivery time on request!

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.23
