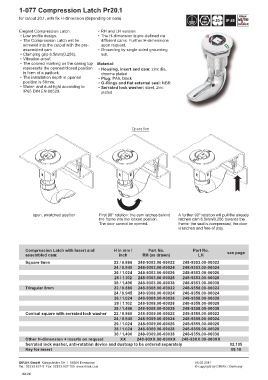

Page 24 - quarter turn

1-077 Compression Latch Pr20.1

for cutout 20.1, with fix H-dimension (depending on cam) 15
Nm
Elegant Compression Latch. • RH and LH version.
• Low profile design. • The H-dimension is pre-defined via
• The Compression Latch will be different cams. Further H-dimensions
screwed into the cutout with the pre- upon request.
assembled cam. • Grounding by single sided grounding
• Clamping grip 6.5mm(0.256). nut.
• Vibration-proof.
• The colored marking on the casing top Material:
represents the opened/closed position • Housing, insert and cam: zinc die,
in form of a padlock. chrome plated
• The installation depth in opened • Plug: PA6, black
position is 59mm. • O-Rings and flat external seal: NBR
• Water- and dust-tight according to • Serrated lock washer: steel, zinc
IP65 DIN EN 60529. plated

Compression Latch with Insert and H in mm / Part No. Part No. see page
assembled cam: inch RH (as drawn) LH
Square 8mm 22 / 0.866 248-9303.00-00022 248-9353.00-00022
24 / 0.945 248-9303.00-00024 248-9353.00-00024
26 / 1.024 248-9303.00-00026 248-9353.00-00026
28 / 1.102 248-9303.00-00028 248-9353.00-00028
38 / 1.496 248-9303.00-00038 248-9353.00-00038
Tringular 8mm 22 / 0.866 248-9308.00-00022 248-9358.00-00022
24 / 0.945 248-9308.00-00024 248-9358.00-00024
26 / 1.024 248-9308.00-00026 248-9358.00-00026
28 / 1.102 248-9308.00-00028 248-9358.00-00028
38 / 1.496 248-9308.00-00038 248-9358.00-00038
Conical square with serrated lock washer 22 / 0.866 248-9309.00-00022 248-9359.00-00022
24 / 0.945 248-9309.00-00024 248-9359.00-00024
26 / 1.024 248-9309.00-00026 248-9359.00-00026
28 / 1.024 248-9309.00-00028 248-9359.00-00028
38 / 1.496 248-9309.00-00038 248-9359.00-00038
Other H-dimension + inserts on request XX 248-93XX.00-000XX 248-93XX.00-000XX
Serrated lock washer, anti-rotation device and dustcap to be ordered separately 02.105
Key for insert 09.10

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.24
