Page 28 - quarter turn

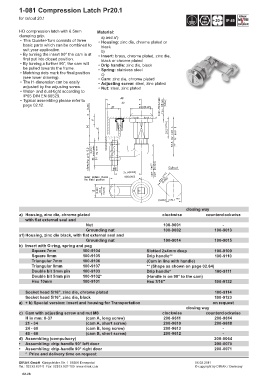

1-081 Compression Latch Pr20.1

for cutout 20.1 15
Nm
HD compression latch with 6.5mm Material:
clamping grip. a) and a¹)
• This Quarter-Turn consists of three • Housing: zinc die, chrome plated or
basic parts which can be combined to black
suit your application. b)
• By turning the insert 90° the cam is at • Insert: brass, chrome plated, zinc die,
first put into closed position. black or chrome plated
• By turning a further 90°, the cam will • Drip handle: zinc die, black
be pulled towards the frame. • Spring: stainless steel
• Matching dots mark the final position c)
(see lower drawing). • Cam: zinc die, chrome plated
• The H-dimension can be easily • Adjusting screw: steel, zinc plated
adjusted by the adjusting screw. • Nut: steel, zinc plated
• Water- and dust-tight according to
IP65 DIN EN 60529.
• Typical assembling please refer to
page 02.12.

closing way
a) Housing, zinc die, chrome plated clockwise counterclockwise
with flat external seal and
Nut 100-9001 -
Grounding nut 100-9002 100-9013
a1) Housing, zinc die black, with flat external seal and
Grounding nut 100-9014 100-9015
b) Insert with O-ring, spring and peg
Square 7mm 100-9104 Slotted 2x4mm deep 100-9109
Square 8mm 100-9105 Drip handle** 100-9110
Triangular 7mm 100-9106 (Cam in line with handle)
Triangular 8mm 100-9107 ** (Shape as shown on page 02.64)
Double bit 3mm pin 100-9103 Drip handle* 100-9111
Double bit 5mm pin 100-9102* (Handle is on 90° to the cam)
Hex 10mm 100-9101 Hex 7/16" 100-9132

Socket head 5/16", zinc die, chrome plated 100-9114
Socket head 5/16", zinc die, black 100-9123
a) + b) Special version: insert and housing for Transportation on request
closing way
c) Cam with adjusting screw and nut M8 clockwise counterclockwise
H in mm: 0-37 (cam A, long screw) 200-9611 200-9614
21 - 34 (cam A, short screw) 200-9610 200-9618
24 - 60 (cam B, long screw) 200-9613 -
45 - 60 (cam B, short screw) 200-9612 -
d) Assembling (compulsory) 200-0064
• Assembling: drip-handle 90° left door 200-0070
• Assembling: drip-handle 90° right door 200-0071
* Price and delivery time on request

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.28
