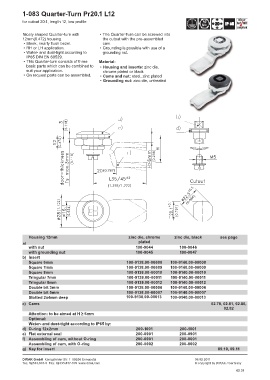

1-083 Quarter-Turn Pr20.1 L12

for cutout 20.1, length 12, low profile

Nicely shaped Quarter-turn with • The Quarter-Turn can be screwed into
12mm(0.472) housing. the cutout with the pre-assembled
• Sleek, nearly flush bezel. cam.
• RH or LH application. • Grounding is possible with use of a
• Water- and dust-tight according to grounding nut.
IP65 DIN EN 60529.
• This Quarter-turn consists of three Material:
basic parts which can be combined to • Housing and inserts: zinc die,
suit your application. chrome plated or black
• On request parts can be assembled. • Cams and nut: steel, zinc plated
• Grounding nut: zinc die, untreated

Housing 12mm zinc die, chrome zinc die, black see page
a) plated
with nut 100-9044 100-9046
with grounding nut 100-9045 100-9047
b) Insert
Square 6mm 100-9138.00-00008 100-9140.00-00008
Square 7mm 100-9138.00-00009 100-9140.00-00009
Square 8mm 100-9138.00-00010 100-9140.00-00010
Tringular 7mm 100-9138.00-00011 100-9140.00-00011
Tringular 8mm 100-9138.00-00012 100-9140.00-00012
Double bit 3mm 100-9138.00-00006 100-9140.00-00006
Double bit 5mm 100-9138.00-00007 100-9140.00-00007
Slotted 2x4mm deep 100-9138.00-00013 100-9140.00-00013
c) Cams 02.78, 02.81, 02.80,
02.82
Attention: to be aimed at H ≥ 6mm
Optional:
Water- and dust-tight according to IP65 by:
d) O-ring 12x2mm 200-1001 200-1001
e) Flat external seal 200-0901 200-0901
f) Assembling of cam, without O-ring 200-0001 200-0001
Assembling of cam, with O-ring 200-0002 200-0002
g) Key for insert 09.10, 09.11

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.31
