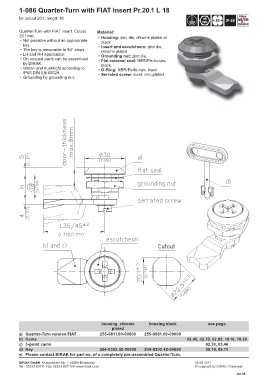

1-086 Quarter-Turn with FIAT Insert Pr.20.1 L 18

for cutout 20.1, length 18 15
Nm
Quarter-Turn with FIAT insert. Cutout Material:
20.1mm. • Housing: zinc die, chrome plated or
• Not possible without an appropriate black
key. • Insert and escutcheon: zinc die,
• The key is removable in 90° steps. chrome plated
• LH and RH application. • Grounding nut: zinc die
• On request parts can be assembled • Flat external seal: NBR/Perbunan,
by DIRAK. black
• Water- and dust-tight according to • O-Ring: NBR/Perbunan, black
IP65 DIN EN 60529. • Serrated screw: steel, zinc plated
• Grounding by grounding nut.

housing, chrome housing black see page
plated
a) Quarter-Turn version FIAT 255-9811.00-00000 255-9861.00-00000
b) Cams 02.45, 02.78, 02.82, 10.16, 10.20
c) 3-point cams 02.78, 03.46
d) Key 204-0302.42-00000 204-0302.42-00000 09.10, 09.11
e) Please contact DIRAK for part no. of a completely pre-assembled Quarter-Turn.
