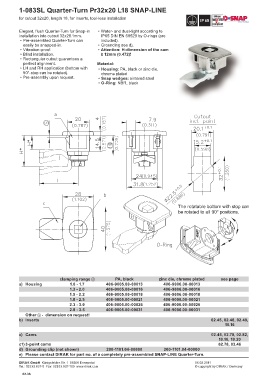

1-083SL Quarter-Turn Pr32x20 L18 SNAP-LINE

for cutout 32x20, length 18, for inserts, tool-less installation

Elegant, flush Quarter-Turn for Snap-in • Water- and dust-tight according to
installation into cutout 32x20.1mm. IP65 DIN EN 60529 by O-rings (are
• Pre-assembled Quarter-Turn can included).
easily be snapped-in. • Grounding see d).
• Vibration-proof. • Attention: H-dimension of the cam
• Blind installation. ≥ 12mm (0.472)!
• Rectangular cutout guarantees a
perfect alignment. Material:
• LH and RH application (bottom with • Housing: PA, black or zinc die,
90°-stop can be rotated). chrome plated
• Pre-assembly upon request. • Snap wedges: sintered steel
• O-Ring: NBR, black

clamping range 1 PA, black zinc die, chrome plated see page
a) Housing 1.0 - 1.7 406-9005.00-00013 406-9006.00-00013
1.3 - 2.0 406-9005.00-00016 406-9006.00-00016
1.5 - 2.2 406-9005.00-00018 406-9006.00-00018
1.8 - 2.5 406-9005.00-00021 406-9006.00-00021
2.3 - 3.0 406-9005.00-00026 406-9006.00-00026
2.8 - 3.5 406-9005.00-00031 406-9006.00-00031
Other 1 - dimension on request!
b) Inserts 02.45, 02.48, 02.49,
10.16

c) Cams 02.45, 02.78, 02.82,
10.16, 10.20
c1) 3-point cams 02.78, 03.46
d) Grounding clip (not shown) 200-1101.04-00000 200-1101.04-00000
e) Please contact DIRAK for part no. of a completely pre-assembled SNAP-LINE Quarter-Turn.

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.36
