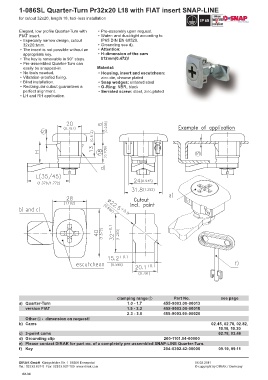

1-086SL Quarter-Turn Pr32x20 L18 with FIAT insert SNAP-LINE

for cutout 32x20, length 18, tool-less installation

Elegant, low profile Quarter-Turn with • Pre-assembly upon request.
FIAT insert. • Water- and dust-tight according to
• Especially narrow design, cutout IP65 DIN EN 60529.
32x20.1mm. • Grounding see d).
• The insert is not possible without an • Attention:
appropriate key. • H-dimension of the cam
• The key is removable in 90° steps. ≥12mm(0.472)!
• Pre-assembled Quarter-Turn can
easily be snapped-in. Material:
• No tools needed. • Housing, insert and escutcheon:
• Vibration-proofed fixing. zinc die, chrome plated
• Blind installation. • Snap wedges: sintered steel
• Rectangular cutout guarantees a • O-Ring: NBR, black
perfect alignment. • Serrated screw: steel, zinc plated
• LH and RH application.

clamping range 1 Part No. see page
a) Quarter-Turn 1.0 - 1.7 455-9003.00-00013
version FIAT 1.5 - 2.2 455-9003.00-00018
2.3 - 3.0 455-9003.00-00026
Other 1 - dimension on request!
b) Cams 02.45, 02.78, 02.82,
10.16, 10.20
c) 3-point cams 02.78, 03.46
d) Grounding clip 200-1101.04-00000
e) Please contact DIRAK for part no. of a completely pre-assembled SNAP-LINE Quarter-Turn.
f) Key 204-0302.42-00000 09.10, 09.11
