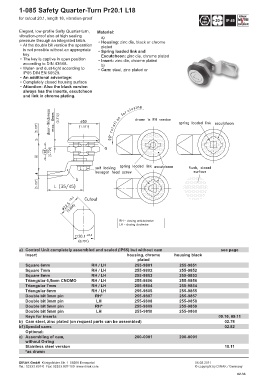

1-085 Safety Quarter-Turn Pr20.1 L18

for cutout 20.1, length 18, vibration-proof 15
Nm
Elegant, low-profile Safty Quarter-turn, Material:
vibration-proof also at high sealing a)
pressure through an integrated latch. • Housing: zinc die, black or chrome
• At the double bit version the operation plated
is not possible without an appropriate • Spring loaded link and
key. Escutcheon: zinc die, chrome plated
• The key is captive in open position • Insert: zinc die, chrome plated
according to DIN 43668. b)
• Water- and dust-tight according to • Cam: steel, zinc plated or
IP65 DIN EN 60529.
• An additional advantage:
• Completely closed housing surface
• Attention: Also the black version
always has the inserts, escutcheon
and link in chrome plating.

a) Control Unit completely assembled and sealed (IP65) but without cam see page
Insert housing, chrome housing black
plated
Square 6mm RH / LH 255-9801 255-9851
Square 7mm RH / LH 255-9802 255-9852
Square 8mm RH / LH 255-9803 255-9853
Triangular 6,5mm CNOMO RH / LH 255-9806 255-9856
Triangular 7mm RH / LH 255-9804 255-9854
Triangular 8mm RH / LH 255-9805 255-9855
Double bit 3mm pin RH* 255-9807 255-9857
Double bit 3mm pin LH 255-9808 255-9858
Double bit 5mm pin RH* 255-9809 255-9859
Double bit 5mm pin LH 255-9810 255-9860
Keys for inserts 09.10, 09.11
b) Cam steel, zinc plated (on request parts can be assembled) 02.78
b1)Special cams 02.82
Optional:
c) Assembling of cam, 200-0001 200-0001
without O-ring
Stainless steel version 10.11
*as drawn
