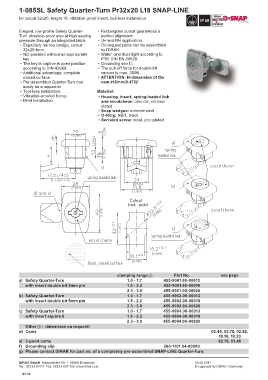

1-085SL Safety Quarter-Turn Pr32x20 L18 SNAP-LINE

for cutout 32x20, length 18, vibration-proof insert, tool-less installation

Elegant, low-profile Safety Quarter- • Rectangular cutout guarantees a
Turn vibration-proof also at high sealing perfect alignment.
pressure through an integrated latch. • LH and RH application.
• Especially narrow design, cutout • On request parts can be assembled
32x20.1mm. by DIRAK.
• Not possible without an appropriate • Water- and dust-tight according to
key. IP65 DIN EN 60529.
• The key is captive in open position • Grounding see f).
according to DIN 43668. • The pull-off force for double bit
• Additional advantage: complete version is max. 300N.
closed surface. • ATTENTION: H-dimension of the
• Pre-assembled Quarter-Turn can cam ≥12mm(0.472)!
easily be snapped-in.
• Tool-less installation. Material:
• Vibration-proofed fixing. • Housing, insert, spring loaded link
• Blind installation. and escutcheon: zinc die, chrome
plated
• Snap wedges: sintered steel
• O-Ring: NBR, black
• Serrated screw: steel, zinc plated

clamping range 1 Part No. see page
a) Safety Quarter-Turn 1.0 - 1.7 455-9001.00-00013
with insert double bit 3mm pin 1.5 - 2.2 455-9001.00-00018
2.3 - 3.0 455-9001.00-00026
b) Safety Quarter-Turn 1.0 - 1.7 455-9002.00-00013
with insert double bit 5mm pin 1.5 - 2.2 455-9002.00-00018
2.3 - 3.0 455-9002.00-00026
c) Safety Quarter-Turn 1.0 - 1.7 455-9004.00-00013
with insert square 8 1.5 - 2.2 455-9004.00-00018
2.3 - 3.0 455-9004.00-00026
Other 1 - dimension on request!
d) Cams 02.45, 02.78, 02.82,
10.16, 10.20
e) 3-point cams 02.78, 03.46
f) Grounding clip 200-1101.04-00000
g) Please contact DIRAK for part no. of a completely pre-assembled SNAP-LINE Quarter-Turn.
