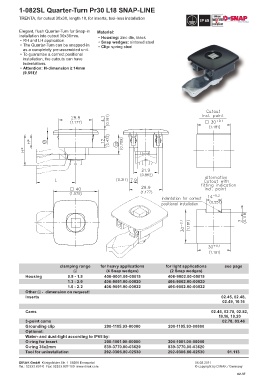

1-082SL Quarter-Turn Pr30 L18 SNAP-LINE

TRENTA, for cutout 30x30, length 18, for inserts, tool-less installation

Elegant, flush Quarter-Turn for Snap-in Material:
installation into cutout 30x30mm. • Housing: zinc die, black
• RH and LH application. • Snap wedges: sintered steel
• The Quarter-Turn can be snapped-in • Clip: spring steel
as a completely pre-assembled unit.
• To guarantee a correct positional
installation, the cutouts can have
indentations.
• Attention: H-dimension ≥ 14mm
(0.551)!

clamping range for heavy applications for light applications see page
1 (4 Snap wedges) (2 Snap wedges)
Housing 0.8 - 1.5 406-9001.00-00015 406-9002.00-00015
1.3 - 2.0 406-9001.00-00020 406-9002.00-00020
1.5 - 2.2 406-9001.00-00022 406-9002.00-00022
Other 1 - dimension on request!
Inserts 02.45, 02.48,
02.49, 10.16

Cams 02.45, 02.78, 02.82,
10.16, 10.20
3-point cams 02.78, 03.46
Grounding clip 200-1105.93-00000 200-1105.93-00000
Optional:
Water- and dust-tight according to IP65 by:
O-ring for insert 200-1001.00-00000 200-1001.00-00000
O-ring 36x2mm 839-3770.00-03620 839-3770.00-03620
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.37
