Page 42 - quarter turn

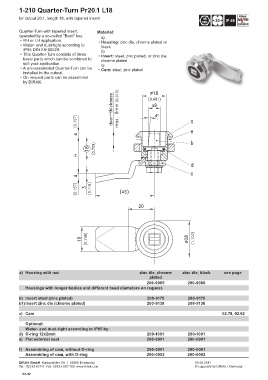

1-210 Quarter-Turn Pr20.1 L18

for cutout 20.1, length 18, with tapered insert 15
Nm
Quarter-Turn with tapered insert, Material:
operated by a so-called "Bern" key. a)
• RH or LH application. • Housing: zinc die, chrome plated or
• Water- and dust-tight according to black
IP65 DIN EN 60529. b)
• This Quarter-Turn consists of three • Insert: steel, zinc plated, or zinc die,
basic parts which can be combined to chrome plated
suit your application. c)
• A pre-assembled Quarter-Turn can be • Cam: steel, zinc plated
installed in the cutout.
• On request parts can be assembled
by DIRAK.

a) Housing with nut zinc die, chrome zinc die, black see page
plated
200-9065 200-9086
Housings with longer bodies and different head diameters on request.

b) Insert steel (zinc plated) 200-9175 200-9175
b1)Insert zinc die (chrome plated) 200-9138 200-9138

c) Cam 02.78, 02.82

Optional:
Water- and dust-tight according to IP65 by:
d) O-ring 12x2mm 200-1001 200-1001
e) Flat external seal 200-0901 200-0901

f) Assembling of cam, without O-ring 200-0001 200-0001
Assembling of cam, with O-ring 200-0002 200-0002

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.42
