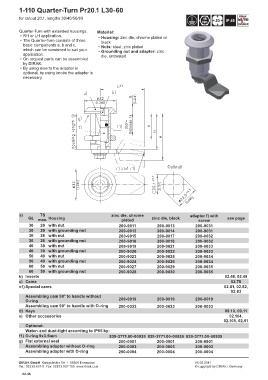

1-110 Quarter-Turn Pr20.1 L30-60

for cutout 20.1, lengths 30/40/50/60 15
Nm
Quarter-Turn with extended housings. Material:
• RH or LH application. • Housing: zinc die, chrome plated or
• The Quarter-Turn consists of three black
basic components a, b and c, • Nuts: steel, zinc plated
which can be combined to suit your • Grounding nut and adapter: zinc
application. die, untreated
• On request parts can be assembled
by DIRAK.
• By using inserts the adapter is
optional, by using knobs the adapter is
necessary.

a) TS zinc die, chrome adapter f) with
GL max. Housing plated zinc die, black screw see page
30 20 with nut 200-9011 200-9013 200-9031
30 20 with grounding nut 200-9012 200-9014 200-9031
36 26 with nut 200-9015 200-9017 200-9032
36 26 with grounding nut 200-9016 200-9018 200-9032
40 30 with nut 200-9019 200-9021 200-9033
40 30 with grounding nut 200-9020 200-9022 200-9033
50 40 with nut 200-9023 200-9025 200-9034
50 40 with grounding nut 200-9024 200-9026 200-9034
60 50 with nut 200-9027 200-9029 200-9035
60 50 with grounding nut 200-9028 200-9030 200-9035
b) Inserts 02.48, 02.49
c) Cams 02.78
c1) Special cams 02.81, 02.82,
02.83
Assembling cam 90° to handle without
O-ring 200-0019 200-0019 200-0019
Assembling cam 90° to handle with O-ring 200-0033 200-0033 200-0033
d) Keys 09.10, 09.11
e) Other accessories 02.104,
02.105, 02.51
Optional:
Water- and dust-tight according to IP65 by:
f1) O-ring 9x3.5mm 839-3771.00-00935 839-3771.00-00935 839-3771.00-00935
g) Flat external seal 200-0901 200-0901 200-0901
Assembling adapter without O-ring 200-0003 200-0003 200-0003
Assembling adapter with O-ring 200-0004 200-0004 200-0004

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.46
