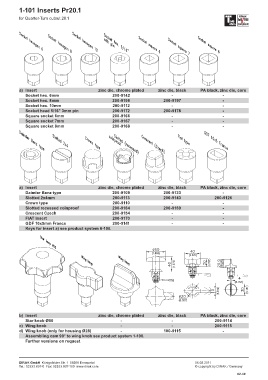

Page 49 - quarter turn

1-101 Inserts Pr20.1

for Quarter-Turn cutout 20.1
M6
4Nm

a) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Socket hex. 6mm 200-9142 - -
Socket hex. 8mm 200-9196 200-9197 -
Socket hex. 10mm 200-9112 - -
Socket head 5/16" 3mm pin 200-9172 200-9178 -
Square socket 6mm 200-9166 - -
Square socket 7mm 200-9167 - -
Square socket 8mm 200-9168 - -

a) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Daimler Benz type 200-9109 200-9133 -
Slotted 2x4mm 200-9113 200-9143 200-9126
Crown type 200-9110 - -
Slotted recessed coinproof 200-9164 200-9169 -
Crescent Czech 200-9154 - -
FIAT Insert 200-9170 - -
GDF 10x5mm France 200-9141 - -
Keys for insert a) see product system 6-100.

b) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Star knob Ø50 - - 200-9114
c) Wing knob - - 200-9115
d) Wing knob (only for housing Ø28) - 100-9115 -
Assembling cam 90° to wing knob see product system 1-100.
Further versions on request
