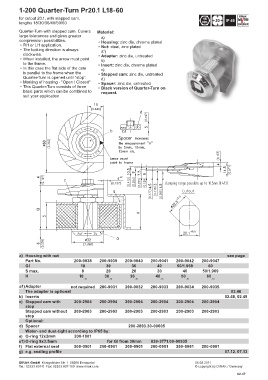

1-200 Quarter-Turn Pr20.1 L18-60

for cutout 20.1, with stepped cam, 15
lengths 18/30/36/40/50/60 Nm
Quarter-Turn with stepped cam. Covers Material:
large tolerances and gives greater a)
compression possibilities. • Housing: zinc die, chrome plated
• RH or LH application. • Nut: steel, zinc plated
• The locking direction is always a¹)
clockwise. • Adapter: zinc die, untreated
• When installed, the arrow must point b)
to the frame. • Insert: zinc die, chrome plated
• In this case the flat side of the cam c)
is parallel to the frame when the • Stepped cam: zinc die, untreated
Quarter-Turn is opened until “stop”. d)
• Marking of housing - "Open / Closed" • Spacer: zinc die, untreated
• This Quarter-Turn consists of three • Black version of Quarter-Turn on
basic parts which can be combined to request.
suit your application.

a) Housing with nut see page
Part No. 200-9038 200-9039 200-9040 200-9041 200-9042 200-9047
GI 18 30 36 40 50/1.969 60
S max. 8 20 26 30 40 50/1.969
H 18 30 36 40 50 60
-10 -10 -10 -10 -10 -10
a1) Adapter not required 200-9031 200-9032 200-9033 200-9034 200-9035
The adapter is optional 02.46
b) Inserts 02.48, 02.49
c) Stepped cam with 200-2904 200-2904 200-2904 200-2904 200-2904 200-2904
stop
Stepped cam without 200-2903 200-2903 200-2903 200-2903 200-2903 200-2903
stop
Optional:
d) Spacer 200-2803.30-00005
Water- and dust-tight according to IP65 by:
e) O-ring 12x2mm 200-1001
e1) O-ring 9x3.5mm for Gl from 30mm 839-3771.00-00935
f) Flat external seal 200-0901 200-0901 200-0901 200-0901 200-0901 200-0901
g) e.g. sealing profile 07.12, 07.13

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.47
