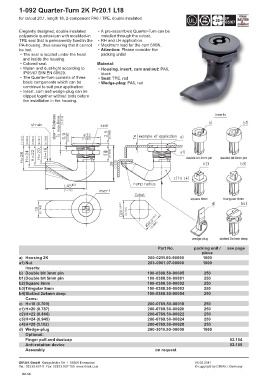

1-092 Quarter-Turn 2K Pr20.1 L18

for cutout 20.1, length 18, 2-component PA6 / TPE, double insulated UL 4Nm IP
PA
65/67
Elegantly designed, double insulated • A pre-assembled Quarter-Turn can be
polyamide quarter-turn with moulded-in installed through the cutout.
TPE seal that is permanently fixed in the • RH and LH application.
PA-housing, thus ensuring that it cannot • Maximum load for the cam 600N.
be lost. • Attention: Please consider the
• The seal is located under the head packing units!
and inside the housing.
• Colored seal. Material:
• Water- and dust-tight according to • Housing, insert, cam and nut: PA6,
IP65/67 DIN EN 60529. black
• The Quarter-Turn consists of three • Seal: TPE, red
basic components which can be • Wedge-plug: PA6, red
combined to suit your application.
• Insert, cam and wedge-plug can be
clipped together without tools before
the installation in the housing.

Part No. packing unit / see page
piece
a) Housing 2K 200-0211.00-00000 1000
a1) Nut 203-0901.07-00000 1000
Inserts:
b) Double bit 3mm pin 100-0388.50-00005 250
b1)Double bit 5mm pin 100-0388.50-00001 250
b2)Square 8mm 100-0388.50-00002 250
b3)Tringular 8mm 100-0388.50-00003 250
b4)Slotted 2x4mm deep 100-0388.50-00004 250
Cams:
c) H=18 (0.709) 200-0769.50-00018 250
c1) H=20 (0.787) 200-0769.50-00020 250
c2)H=22 (0.866) 200-0769.50-00022 250
c3)H=24 (0.945) 200-0769.50-00024 250
c4)H=28 (1.102) 200-0769.50-00028 250
d) Wedge-plug 200-3010.50-00000 1000
Optional:
Finger pull and dustcap 02.104
Anti-rotation device 02.105
Assembly on request
