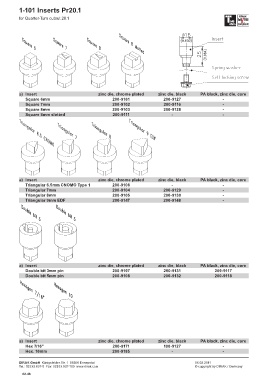

Page 48 - quarter turn

1-101 Inserts Pr20.1

for Quarter-Turn cutout 20.1
M6
4Nm

a) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Square 6mm 200-9101 200-9127 -
Square 7mm 200-9102 200-9116 -
Square 8mm 200-9103 200-9128 -
Square 8mm slotted 200-9111 - -

a) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Triangular 6.5mm CNOMO Type 1 200-9106 - -
Triangular 7mm 200-9104 200-9129 -
Triangular 8mm 200-9105 200-9130 -
Triangular 9mm EDF 200-9147 200-9148 -

a) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Double bit 3mm pin 200-9107 200-9131 200-9117
Double bit 5mm pin 200-9108 200-9132 200-9118

a) Insert zinc die, chrome plated zinc die, black PA black, zinc die, core
Hex 7/16" 200-9171 100-9127 -
Hex. 10mm 200-9185 - -
