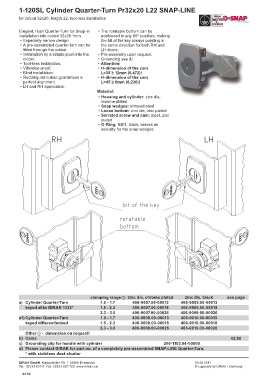

1-120SL Cylinder Quarter-Turn Pr32x20 L22 SNAP-LINE

for cutout 32x20, length 22, tool-less installation

Elegant, flush Quarter-Turn for Snap-in • The rotatable bottom can be
installation into cutout 32x20.1mm. positioned in any 90° position, making
• Especially narrow design. the bit of the key always pointing in
• A pre-assembled quarter-turn can be the same direction for both RH and
fitted through the cutout. LH doors.
• Installation by a simple push into the • Pre-assembly upon request.
cutout. • Grounding see d).
• Tool-less installation. • Attention:
• Vibration-proof. • H-dimension of the cam
• Blind installation. L=35 ≥ 12mm (0.472)!
• Rectangular cutout guarantees a • H-dimension of the cam
perfect alignment. L=45 ≥ 6mm (0.236)!
• LH and RH application.
Material:
• Housing and cylinder: zinc die,
chrome plated
• Snap wedges: sintered steel
• Loose bottom: zinc die, zinc plated
• Serrated screw and cam: steel, zinc
plated
• O-Ring: NBR, black, serves as
security for the snap wedges

clamping range 1 zinc die, chrome plated zinc die, black see page
a) Cylinder Quarter-Turn 1.0 - 1.7 406-9007.00-00013 406-9009.00-00013
keyed alike DIRAK 1333* 1.5 - 2.2 406-9007.00-00018 406-9009.00-00018
2.3 - 3.0 406-9007.00-00026 406-9009.00-00026
a1) Cylinder Quarter-Turn 1.0 - 1.7 406-9008.00-00013 406-9010.00-00013
keyed different/mixed 1.5 - 2.2 406-9008.00-00018 406-9010.00-00018
2.3 - 3.0 406-9008.00-00026 406-9010.00-00026
Other 1 - dimension on request!
b) Cams 02.82
c) Grounding clip for handle with cylinder 200-1103.04-00000
d) Please contact DIRAK for part no. of a completely pre-assembled SNAP-LINE Quarter-Turn.
* with stainless dust-shutter

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.52
