Page 38 - quarter turn

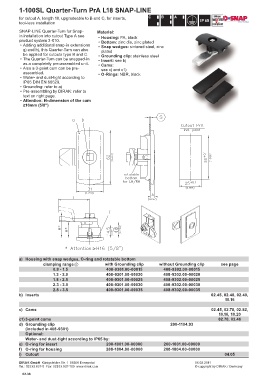

1-100SL Quarter-Turn PrA L18 SNAP-LINE

for cutout A, length 18, upgradeable to B and C, for inserts,
tool-less installation
SNAP-LINE Quarter-Turn for Snap- Material:
in installation into cutout Type A see • Housing: PA, black
product system 3-010. • Bottom: zinc die, zinc plated
• Adding additional snap-in extensions • Snap wedges: sintered steel, zinc
g) and h), this Quarter-Turn can also plated
be applied for cutouts type B and C. • Grounding clip: stainless steel
• The Quarter-Turn can be snapped-in • Insert: see b)
as a completely pre-assembled unit. • Cams:
• Also a 3-point cam can be pre- see c) and c1)
assembled. • O-Rings: NBR, black
• Water- and dust-tight according to
IP65 DIN EN 60529.
• Grounding: refer to a)
• Pre-assembling by DIRAK: refer to
text on right page.
• Attention: H-dimension of the cam
≥16mm (5/8")

a) Housing with snap wedges, O-ring and rotatable bottom
clamping range 1 with Grounding clip without Grounding clip see page
0.8 - 1.5 408-9301.00-00015 408-9302.00-00015
1.3 - 2.0 408-9301.00-00020 408-9302.00-00020
1.8 - 2.5 408-9301.00-00025 408-9302.00-00025
2.3 - 3.0 408-9301.00-00030 408-9302.00-00030
2.8 - 3.5 408-9301.00-00035 408-9302.00-00035
b) Inserts 02.45, 02.48, 02.49,
10.16

c) Cams 02.45, 02.78, 02.82,
10.16, 10.20
c1) 3-point cams 02.78, 03.46
d) Grounding clip 200-1104.93
(included in 408-9301)
Optional:
Water- and dust-tight according to IP65 by:
e) O-ring for insert 200-1001.00-00000 200-1001.00-00000
f) O-ring for housing 208-1804.00-00000 208-1804.00-00000
i) Cutout 04.05

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.38
