Page 26 - quarter turn

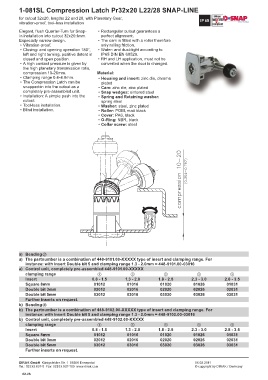

1-081SL Compression Latch Pr32x20 L22/28 SNAP-LINE

for cutout 32x20, lengths 22 and 28, with Planetary Gear,
vibration-proof, tool-less installation
Elegant, flush Quarter-Turn for Snap- • Rectangular cutout guarantees a
in installation into cutout 32x20.1mm. perfect alignment.
Especially narrow design. • The cam is fitted with a roller therefore
• Vibration-proof. only rolling friction.
• Closing- and opening operation 180°, • Water- and dust-tight according to
left and right turning, positive detent in IP65 DIN EN 60529.
closed and open position. • RH and LH application, must not be
• A high contact pressure is given by converted when the door is changed.
the high planetary transmission ratio,
compression 10-20mm. Material:
• Clamping range 0.4-4.0mm. • Housing and insert: zinc die, chrome
• The Compression Latch can be plated
snapped-in into the cutout as a • Cam: zinc die, zinc plated
completely pre-assembled unit. • Snap wedges: sintered steel
• Installation: A simple push into the • Spring and Retaining washer:
cutout. spring steel
• Tool-less installation. • Washer: steel, zinc plated
• Blind installation. • Roller: POM, matt black
• Cover: PA6, black
• O-Ring: NBR, black
• Collar screw: steel

a) Bending 6
a) The partnumber is a combination of 448-9101.00-XXXXX type of insert and clamping range. For
instance: with Insert Double bit 5 and clamping range 1.3 - 2.0mm = 448-9101.00-03016
a) Control unit, completely pre-assembled 448-9101.00-XXXXX
clamping range 1 1 1 1 1
Insert 0.8 - 1.5 1.3 - 2.0 1.8 - 2.5 2.3 - 3.0 2.8 - 3.5
Square 8mm 01012 01016 01020 01026 01031
Double bit 3mm 02012 02016 02020 02026 02031
Double bit 5mm 03012 03016 03020 03026 03031
Further inserts on request.
b) Bending 9
b) The partnumber is a combination of 448-9102.00-XXXXX type of insert and clamping range. For
instance: with Insert Double bit 5 and clamping range 1.3 - 2.0mm = 448-9102.00-03016
b) Control unit, completely pre-assembled 448-9102.00-XXXXX
clamping range 1 1 1 1 1
Insert 0.8 - 1.5 1.3 - 2.0 1.8 - 2.5 2.3 - 3.0 2.8 - 3.5
Square 8mm 01012 01016 01020 01026 01031
Double bit 3mm 02012 02016 02020 02026 02031
Double bit 5mm 03012 03016 03020 03026 03031
Further inserts on request.

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2011
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
02.26
