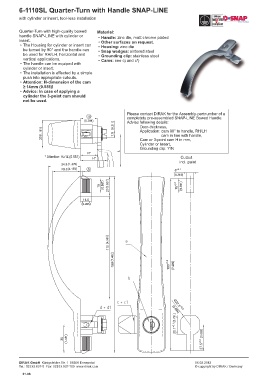

6-1110SL Quarter-Turn with Handle SNAP-LINE

with cylinder or insert, tool-less installation

Quarter-Turn with high-quality bowed Material:
handle SNAP-LINE with cylinder or • Handle: zinc die, matt chrome plated
insert. • Other surfaces on request.
• The Housing for cylinder or insert can • Housing: zinc die
be turned by 90° and the handle can • Snap wedges: sintered steel
be used for RH/LH, horizontal and • Grounding clip: stainless steel
vertical applications. • Cams: see c) and c¹)
• The handle can be equiped with
cylinder or insert.
• The installation is effected by a simple
push into appropriate cutouts.
• Attention: H-dimension of the cam
≥ 14mm (0.551)!
• Advice: In case of applying a
cylinder the 3-point cam should
not be used.
