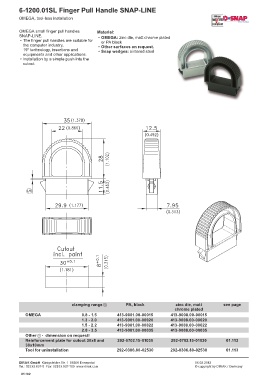

6-1200.01SL Finger Pull Handle SNAP-LINE

OMEGA, tool-less installation

OMEGA small finger pull handles Material:
SNAP-LINE. • OMEGA: zinc die, matt chrome plated
• The finger pull handles are suitable for or PA black
the computer industry, • Other surfaces on request.
19“ technology, insertions and • Snap wedges: sintered steel
equipments and other applications.
• Installation by a simple push into the
cutout.

clamping range 1 PA, black zinc die, matt see page
chrome plated
OMEGA 0.8 - 1.5 413-9001.00-00015 413-9008.00-00015
1.3 - 2.0 413-9001.00-00020 413-9008.00-00020
1.5 - 2.2 413-9001.00-00022 413-9008.00-00022
2.8 - 3.5 413-9001.00-00035 413-9008.00-00035
Other 1 - dimension on request!
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.102
