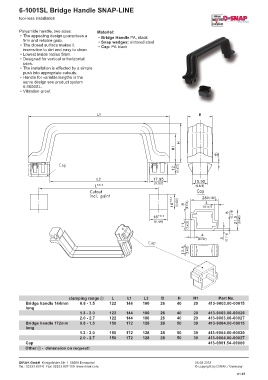

6-1001SL Bridge Handle SNAP-LINE

tool-less installation

Polyamide handle, two sizes. Material:
• The appealing design guarantees a • Bridge Handle PA, black
firm and reliable grab. • Snap wedges: sintered steel
• The closed surface makes it • Cap: PA black
insensitive to dirt and easy to clean.
• Lowest inside radius 5mm.
• Designed for vertical or horizontal
uses.
• The installation is effected by a simple
push into appropriate cutouts.
• Handle for variable lengths in the
same design see product system
6-1600SL.
• Vibration-proof.

clamping range 1 L L1 L2 B H H1 Part No.
Bridge handle 144mm 0.8 - 1.5 122 144 100 26 40 29 413-9003.00-00015
long
1.3 - 2.0 122 144 100 26 40 29 413-9003.00-00020
2.0 - 2.7 122 144 100 26 40 29 413-9003.00-00027
Bridge handle 172mm 0.8 - 1.5 150 172 128 28 50 39 413-9004.00-00015
long
1.3 - 2.0 150 172 128 28 50 39 413-9004.00-00020
2.0 - 2.7 150 172 128 28 50 39 413-9004.00-00027
Cap 413-0901.54-00000
Other 1 - dimension on request!

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.97
