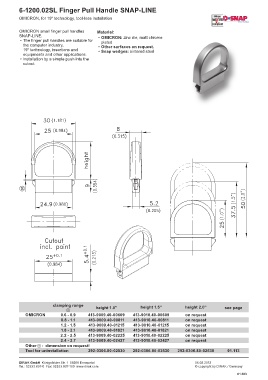

6-1200.02SL Finger Pull Handle SNAP-LINE

OMICRON, for 19" technology, tool-less installation

OMICRON small finger pull handles Material:
SNAP-LINE. • OMICRON: zinc die, matt chrome
• The finger pull handles are suitable for plated
the computer industry, • Other surfaces on request.
19“ technology, insertions and • Snap wedges: sintered steel
equipments and other applications.
• Installation by a simple push into the
cutout.

clamping range height 1.0" height 1.5" height 2.0" see page
1
OMICRON 0.6 - 0.9 413-9009.40-00609 413-9010.40-00609 on request
0.8 - 1.1 413-9009.40-00811 413-9010.40-00811 on request
1.2 - 1.5 413-9009.40-01215 413-9010.40-01215 on request
1.8 - 2.1 413-9009.40-01821 413-9010.40-01821 on request
2.2 - 2.5 413-9009.40-02225 413-9010.40-02225 on request
2.4 - 2.7 413-9009.40-02427 413-9010.40-02427 on request
Other 1 - dimension on request!
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.103
