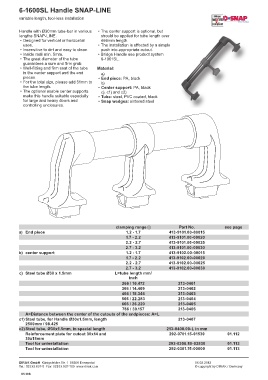

Page 108 - snapline

6-1600SL Handle SNAP-LINE

variable length, tool-less installation

Handle with Ø30mm tube-bar in various • The center support is optional, but
lengths SNAP-LINE. should be applied for tube length over
• Designed for vertical or horizontal 466mm length.
uses. • The installation is effected by a simple
• Insensitive to dirt and easy to clean. push into appropriate cutout.
• Inside radii min. 5mm. • Bridge Handle see product system
• The great diameter of the tube 6-1001SL.
guarantees a sure and firm grab.
• Well-fitting and firm seat of the tube Material:
in the center support and the end a)
pieces. • End piece: PA, black
• For the total size, please add 51mm to b)
the tube length. • Center support: PA, black
• The optional usable center supports c), c1) and c2)
make this handle suitable especially • Tube: steel, PVC coated, black
for large and heavy doors and • Snap wedges: sintered steel
controlling enclosures.

clamping range 1 Part No. see page
a) End piece 1.2 - 1.7 413-9101.00-00015
1.7 - 2.2 413-9101.00-00020
2.2 - 2.7 413-9101.00-00025
2.7 - 3.2 413-9101.00-00030
b) center support 1.2 - 1.7 413-9102.00-00015
1.7 - 2.2 413-9102.00-00020
2.2 - 2.7 413-9102.00-00025
2.7 - 3.2 413-9102.00-00030
c) Steel tube Ø30 x 1.5mm L=tube length mm/
inch
266 / 10.472 213-0401
366 / 14.409 213-0402
466 / 18.346 213-0403
566 / 22.283 213-0404
666 / 26.220 213-0405
766 / 30.157 213-0406
A=Distance between the center of the cutouts of the endpieces: A=L
c1) Steel tube, for Handle Ø30x1.5mm, length 213-0407
2500mm / 98.425
c2)Steel tube, Ø30x1.5mm, in special length 213-0408.00-L in mm
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.108
