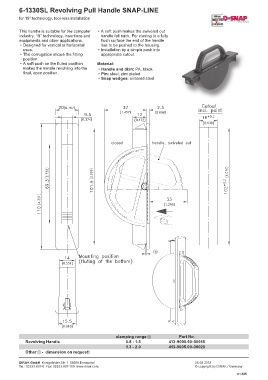

6-1330SL Revolving Pull Handle SNAP-LINE

for 19" technology, tool-less installation

This handle is suitable for the computer • A soft push makes the swiveled out
industry, 19“ technology, insertions and handle fall back. For closing to a fully
equipments and other applications. flush surface the end of the handle
• Designed for vertical or horizontal has to be pushed to the housing.
uses. • Installation by a simple push into
• The corrugation shows the fitting appropriate cutout.
position.
• A soft push on the fluted position Material:
makes the handle revolving into the • Handle and dish: PA, black
final, open position. • Pin: steel, zinc plated
• Snap wedges: sintered steel

clamping range 1 Part No.
Revolving Handle 0.8 - 1.5 413-9005.00-00015
1.3 - 2.0 413-9005.00-00020
Other 1 - dimension on request!
