Page 101 - snapline

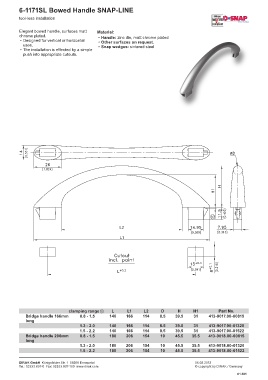

6-1171SL Bowed Handle SNAP-LINE

tool-less installation

Elegant bowed handle, surfaces matt Material:
chrome plated. • Handle: zinc die, matt chrome plated
• Designed for vertical or horizontal • Other surfaces on request.
uses. • Snap wedges: sintered steel
• The installation is effected by a simple
push into appropriate cutouts.

clamping range 1 L L1 L2 D H H1 Part No.
Bridge handle 166mm 0.8 - 1.5 140 166 114 8.5 39.5 31 413-9017.00-00815
long
1.3 - 2.0 140 166 114 8.5 39.5 31 413-9017.00-01320
1.5 - 2.2 140 166 114 8.5 39.5 31 413-9017.00-01522
Bridge handle 206mm 0.8 - 1.5 180 206 154 10 45.5 35.5 413-9018.00-00815
long
1.3 - 2.0 180 206 154 10 45.5 35.5 413-9018.00-01320
1.5 - 2.2 180 206 154 10 45.5 35.5 413-9018.00-01522

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.101
