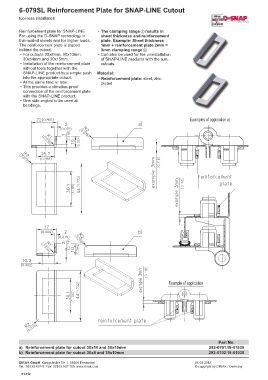

6-079SL Reinforcement Plate for SNAP-LINE Cutout

tool-less installation

Reinforcement plate for SNAP-LINE. • The clamping range 1 results in
For using the D-SNAP technology in sheet thickness and reinforcement
thin-walled sheets and for higher loads. plate. Example: Sheet thickness
The reinforcement plate is placed 1mm + reinforcement plate 2mm =
behind the cutout. 3mm clamping range 1
• For cutouts 30x8mm, 30x10mm, • Can also be used for the uninstallation
30x14mm and 30x15mm. of SNAP-LINE products with the a.m.
• Installation of the reinforcement plate cutouts.
without tools together with the
SNAP-LINE product by a simple push Material:
into the appropriate cutout. • Reinforcement plate: steel, zinc
• At the same time or later. plated
• This provides a vibration-proof
connection of the reinforcement plate
with the SNAP-LINE product.
• One side angled to be used at
bendings.

Part No.
a) Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530
b) Reinforcement plate for cutout 30x8 and 30x10mm 292-0702.15-01030

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.112
