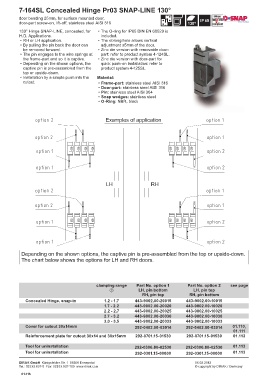

7-164SL Concealed Hinge Pr03 SNAP-LINE 130°

door bending 25mm, for surface mounted door,
door-part screw-on, lift-off, stainless steel AISI 316
130° Hinge SNAP-LINE, concealed, for • The O-ring for IP65 DIN EN 60529 is
H.D. Applications. included.
• RH or LH application. • The oblong hole allows vertical
• By pulling the pin back the door can adjustment ±5mm of the door.
be removed forward. • Zinc die version with removable door-
• The pin engages to the wire springs at part: refer to product system 4-124SL.
the frame-part and so it is captive. • Zinc die version with door-part for
• Depending on the shown options, the quick push-on installation: refer to
captive pin is pre-assembled from the product system 4-125SL.
top or upside-down.
• Installation by a simple push into the Material:
cutout. • Frame-part: stainless steel AISI 316
• Door-part: stainless steel AISI 316
• Pin: stainless steel AISI 304
• Snap wedges: stainless steel
• O-Ring: NBR, black

clamping range Part No. option 1 Part No. option 2 see page
1 LH, pin bottom LH, pin top
RH, pin top RH, pin bottom
Concealed Hinge, snap-in 1.2 - 1.7 443-9002.00-20015 443-9002.00-10015
1.7 - 2.2 443-9002.00-20020 443-9002.00-10020
2.2 - 2.7 443-9002.00-20025 443-9002.00-10025
2.7 - 3.2 443-9002.00-20030 443-9002.00-10030
3.0 - 3.5 443-9002.00-20033 443-9002.00-10033
Cover for cutout 30x14mm 292-0402.00-03014 292-0402.00-03014 01.110,
01.111
Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530 292-0701.15-01530 01.112

Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.116
