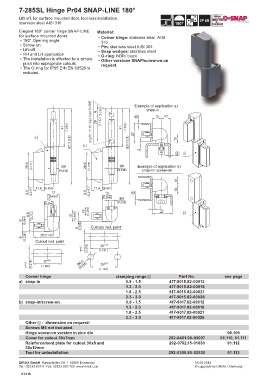

7-285SL Hinge Pr04 SNAP-LINE 180°

Lift-off, for surface mounted door, tool-less installation,
stainless steel AISI 316
Elegant 180° corner hinge SNAP-LINE Material:
for surface mounted doors. • Corner hinge: stainless steel AISI
• 180° Opening angle. 316
• Screw-on. • Pin: stainless steel AISI 304
• Lift-off. • Snap wedges: stainless steel
• RH and LH application. • O-ring: NBR/ black
• The installation is effected by a simple • Other versions SNAP/screw-on on
push into appropriate cutouts. request.
• The O-ring for IP65 DIN EN 60529 is
included.

Corner hinge clamping range 1 Part No. see page
a) snap-in 0.8 - 1.5 417-9015.82-00012
1.3 - 2.0 417-9015.82-00016
1.8 - 2.5 417-9015.82-00021
2.3 - 3.0 417-9015.82-00026
b) snap-in/screw-on 0.8 - 1.5 417-9017.82-00012
1.3 - 2.0 417-9017.82-00016
1.8 - 2.5 417-9017.82-00021
2.3 - 3.0 417-9017.82-00026
Other 1 - dimension on request!
Screws M6 not included.
Hinge screw-on version in zinc die 06.109
Cover for cutout 30x7mm 292-0401.00-03007 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.118
