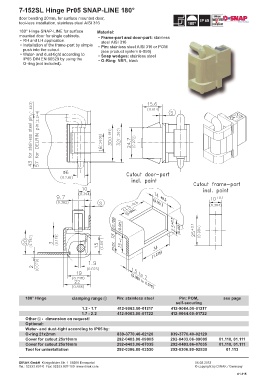

7-152SL Hinge Pr05 SNAP-LINE 180°

door bending 20mm, for surface mounted door,
tool-less installation, stainless steel AISI 316
180° Hinge SNAP-LINE for surface Material:
mounted door for single cabinets. • Frame-part and door-part: stainless
• RH and LH application. steel AISI 316
• Installation of the frame-part by simple • Pin: stainless steel AISI 316 or POM
push into the cutout. (see product system 6-050)
• Water- and dust-tight according to • Snap wedges: stainless steel
IP65 DIN EN 60529 by using the • O-Ring: NBR, black
O-ring (not included).

180° Hinge clamping range 1 Pin: stainless steel Pin: POM, see page
self-securing
1.2 - 1.7 412-9063.00-01217 412-9064.00-01217
1.7 - 2.2 412-9063.00-01722 412-9064.00-01722
Other 1 - dimension on request!
Optional:
Water- and dust-tight according to IP65 by:
O-ring 21x2mm 839-3770.40-02120 839-3770.40-02120
Cover for cutout 25x10mm 292-0403.06-09005 292-0403.06-09005 01.110, 01.111
Cover for cutout 25x10mm 292-0403.06-07035 292-0403.06-07035 01.110, 01.111
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113
