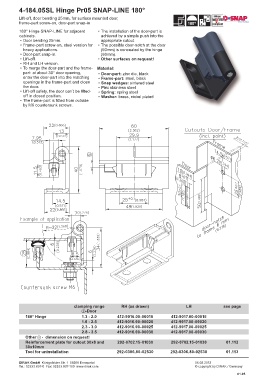

4-184.05SL Hinge Pr05 SNAP-LINE 180°

Lift-off, door bending 25mm, for surface mounted door,
frame-part screw-on, door-part snap-in
180° Hinge SNAP-LINE for adjacent • The installation of the door-part is
cabinets. achieved by a simple push into the
• Door bending 25mm. appropriate cutout.
• Frame-part screw-on, steel version for • The possible door-notch at the door
heavy applications. (50mm) is concealed by the hinge
• Door-part snap-in. (60mm).
• Lift-off. • Other surfaces on request!
• RH and LH version.
• To merge the door-part and the frame- Material:
part: at about 30° door opening, • Door-part: zinc die, black
enter the door-part into the matching • Frame-part: steel, black
openings in the frame-part and close • Snap wedges: sintered steel
the door. • Pin: stainless steel
• Lift-off safety, the door can´t be lifted- • Spring: spring steel
off in closed position. • Washer: brass, nickel plated
• The frame-part is fitted from outside
by M6 countersunk screws.

clamping range RH (as drawn) LH see page
1-Door
180° Hinge 1.3 - 2.0 412-9016.00-00015 412-9017.00-00015
1.8 - 2.5 412-9016.00-00020 412-9017.00-00020
2.3 - 3.0 412-9016.00-00025 412-9017.00-00025
2.8 - 3.5 412-9016.00-00030 412-9017.00-00030
Other 1 - dimension on request!
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.95
