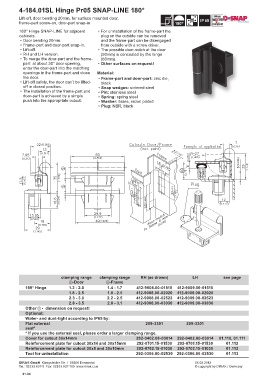

4-184.01SL Hinge Pr05 SNAP-LINE 180°

Lift-off, door bending 20mm, for surface mounted door,
frame-part screw-on, door-part snap-in
180° Hinge SNAP-LINE for adjacent • For uninstallation of the frame-part the
cabinets. plug on the outside can be removed
• Door bending 20mm. and the frame-part can be disengaged
• Frame-part and door-part snap-in. from outside with a screw driver.
• Lift-off. • The possible door-notch at the door
• RH and LH version. (50mm) is concealed by the hinge
• To merge the door-part and the frame- (60mm).
part: at about 30° door opening, • Other surfaces on request!
enter the door-part into the matching
openings in the frame-part and close Material:
the door. • Frame-part and door-part: zinc die,
• Lift-off safety, the door can´t be lifted- black
off in closed position. • Snap wedges: sintered steel
• The installation of the frame-part and • Pin: stainless steel
door-part is achieved by a simple • Spring: spring steel
push into the appropriate cutout. • Washer: brass, nickel plated
• Plug: NBR, black

clamping range clamping range RH (as drawn) LH see page
1-Door 1-Frame
180° Hinge 1.3 - 2.0 1.4 - 1.7 412-9008.00-01515 412-9009.00-01515
1.8 - 2.5 1.8 - 2.1 412-9008.00-02020 412-9009.00-02020
2.3 - 3.0 2.2 - 2.5 412-9008.00-02523 412-9009.00-02523
2.8 - 3.5 2.8 - 3.1 412-9008.00-03030 412-9009.00-03030
Other 1 - dimension on request!
Optional:
Water- and dust-tight according to IP65 by:
Flat external 209-3301 209-3301
seal*
* If you use the external seal, please order a larger clamping range.
Cover for cutout 30x14mm 292-0402.00-03014 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530 292-0701.15-01530 01.112
Reinforcement plate for cutout 30x8 and 30x10mm 292-0702.15-01030 292-0702.15-01030 01.112
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.94
