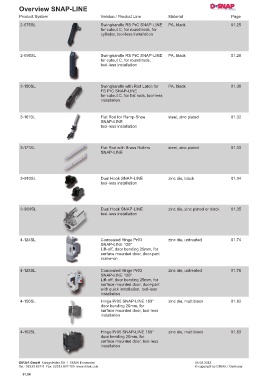

Overview SNAP-LINE

Product System Version / Product Line Material Page
2-075SL Swinghandle RS PrC SNAP-LINE PA, black 01.25
for cutout C, for round rods, for
cylinder, tool-less installation

2-090SL Swinghandle RS PrC SNAP-LINE PA, black 01.28
for cutout C, for round rods,
tool-less installation

3-150SL Swinghandle with Rod Latch for PA, black 01.30
FS PrC SNAP-LINE
for cutout C, for flat rods, tool-less
installation

3-161SL Flat Rod for Ramp-Shoe steel, zinc plated 01.32
SNAP-LINE
tool-less installation

3-171SL Flat Rod with Brass Rollers steel, zinc plated 01.33
SNAP-LINE

3-910SL Dual Hook SNAP-LINE zinc die, black 01.34
tool-less installation

3-960SL Dual Hook SNAP-LINE zinc die, zinc plated or black 01.35
tool-less installation

4-124SL Concealed Hinge Pr03 zinc die, untreated 01.74
SNAP-LINE 130°
Lift-off, door bending 25mm, for
surface mounted door, door-part
screw-on

4-125SL Concealed Hinge Pr03 zinc die, untreated 01.76
SNAP-LINE 130°
Lift-off, door bending 25mm, for
surface mounted door, door-part
with quick installation, tool-less
installation
4-150SL Hinge Pr05 SNAP-LINE 180° zinc die, matt black 01.82
door bending 20mm, for
surface mounted door, tool-less
installation

4-152SL Hinge Pr05 SNAP-LINE 180° zinc die, matt black 01.83
door bending 20mm, for
surface mounted door, tool-less
installation
