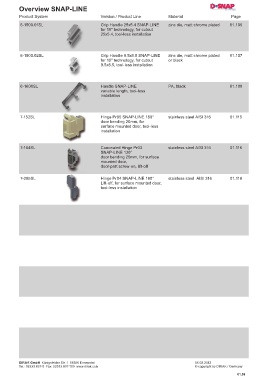

Overview SNAP-LINE

Product System Version / Product Line Material Page
6-1500.01SL Grip Handle 25x5.4 SNAP-LINE zinc die, matt chrome plated 01.106
for 19" technology, for cutout
25x5.4, tool-less installation

6-1500.02SL Grip Handle 9.5x8.5 SNAP-LINE zinc die, matt chrome plated 01.107
for 19" technology, for cutout or black
9.5x8.5, tool-less installation

6-1600SL Handle SNAP-LINE PA, black 01.108
variable length, tool-less
installation

7-152SL Hinge Pr05 SNAP-LINE 180° stainless steel AISI 316 01.115
door bending 20mm, for
surface mounted door, tool-less
installation

7-164SL Concealed Hinge Pr03 stainless steel AISI 316 01.116
SNAP-LINE 130°
door bending 25mm, for surface
mounted door,
door-part screw-on, lift-off

7-285SL Hinge Pr04 SNAP-LINE 180° stainless steel AISI 316 01.118
Lift-off, for surface mounted door,
tool-less installation

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.09
