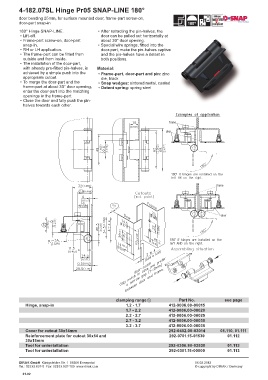

4-182.07SL Hinge Pr05 SNAP-LINE 180°

door bending 25mm, for surface mounted door, frame-part screw-on,
door-part snap-in
180° Hinge SNAP-LINE. • After retracting the pin-halves, the
• Lift-off. door can be pulled out horizontally at
• Frame-part screw-on, door-part about 30° door opening.
snap-in. • Special wire springs, fitted into the
• RH or LH application. door-part, make the pin-halves captive
• The frame-part can be fitted from and the pin-halves have a detent in
outside and from inside. both positions.
• The installation of the door-part,
with already pre-fitted pin-halves, is Material:
achieved by a simple push into the • Frame-part, door-part and pin: zinc
appropriate cutout. die, black
• To merge the door-part and the • Snap wedges: sintered metal, coated
frame-part at about 30° door opening, • Detent spring: spring steel
enter the door-part into the matching
openings in the frame-part.
• Close the door and fully push the pin-
halves towards each other.

clamping range 1 Part No. see page
Hinge, snap-in 1.2 - 1.7 412-9006.00-00015
1.7 - 2.2 412-9006.00-00020
2.2 - 2.7 412-9006.00-00025
2.7 - 3.2 412-9006.00-00030
3.2 - 3.7 412-9006.00-00035
Cover for cutout 30x14mm 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.92
