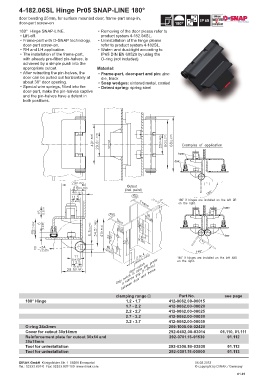

4-182.06SL Hinge Pr05 SNAP-LINE 180°

door bending 25mm, for surface mounted door, frame-part snap-in,
door-part screw-on
180° Hinge SNAP-LINE. • Removing of the door please refer to
• Lift-off. product system 4-182.04SL.
• Frame-part with D-SNAP technology, • Uninstallation of the hinge please
door-part screw-on. refer to product system 4-182SL.
• RH and LH application. • Water- and dust-tight according to
• The installation of the frame-part, IP65 DIN EN 60529 by using the
with already pre-fitted pin-halves, is O-ring (not included).
achieved by a simple push into the
appropriate cutout. Material:
• After retracting the pin-halves, the • Frame-part, door-part and pin: zinc
door can be pulled out horizontally at die, black
about 30° door opening. • Snap wedges: sintered metal, coated
• Special wire springs, fitted into the • Detent spring: spring steel
door-part, make the pin-halves captive
and the pin-halves have a detent in
both positions.

clamping range 1 Part No. see page
180° Hinge 1.2 - 1.7 412-9062.00-00015
1.7 - 2.2 412-9062.00-00020
2.2 - 2.7 412-9062.00-00025
2.7 - 3.2 412-9062.00-00030
3.2 - 3.7 412-9062.00-00035
O-ring 24x2mm 200-1005.00-02420
Cover for cutout 30x14mm 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.91
