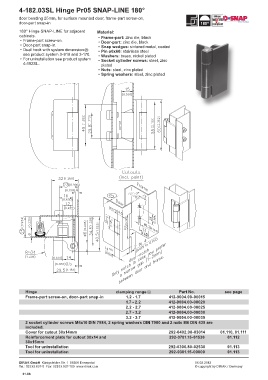

4-182.03SL Hinge Pr05 SNAP-LINE 180°

door bending 25mm, for surface mounted door, frame-part screw-on,
door-part snap-in
180° Hinge SNAP-LINE for adjacent Material:
cabinets. • Frame-part: zinc die, black
• Frame-part screw-on. • Door-part: zinc die, black
• Door-part snap-in. • Snap wedges: sintered metal, coated
• Dual hook with system dimension 7 • Pin ø6x60: stainless steel
see product system 3-910 and 3-170. • Washers: brass, nickel plated
• For uninstallation see product system • Socket cylinder screws: steel, zinc
4-182SL. plated
• Nuts: steel, zinc plated
• Spring washers: steel, zinc plated

Hinge clamping range 1 Part No. see page
Frame-part screw-on, door-part snap-in 1.2 - 1.7 412-9004.00-00015
1.7 - 2.2 412-9004.00-00020
2.2 - 2.7 412-9004.00-00025
2.7 - 3.2 412-9004.00-00030
3.2 - 3.7 412-9004.00-00035
2 socket cylinder screws M6x10 DIN 7984, 2 spring washers DIN 7980 and 2 nuts M6 DIN 439 are
included.
Cover for cutout 30x14mm 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113
