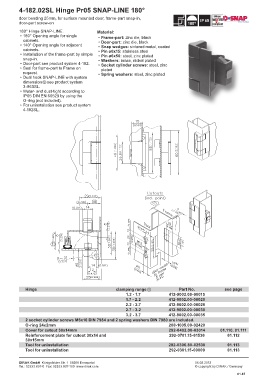

4-182.02SL Hinge Pr05 SNAP-LINE 180°

door bending 25mm, for surface mounted door, frame-part snap-in,
door-part screw-on
180° Hinge SNAP-LINE. Material:
• 180° Opening angle for single • Frame-part: zinc die, black
cabinets. • Door-part: zinc die, black
• 140° Opening angle for adjacent • Snap wedges: sintered metal, coated
cabinets. • Pin ø6x15: stainless steel
• Installation of the frame-part by simple • Pin ø6x50: steel, zinc plated
snap-in. • Washers: brass, nickel plated
• Door-part see product system 4-182. • Socket cylinder screws: steel, zinc
• Seal for frame-part to Frame on plated
request. • Spring washers: steel, zinc plated
• Dual hook SNAP-LINE with system
dimension 5 see product system
3-960SL.
• Water- and dust-tight according to
IP65 DIN EN 60529 by using the
O-ring (not included).
• For uninstallation see product system
4-182SL.

Hinge clamping range 1 Part No. see page
1.2 - 1.7 412-9002.00-00015
1.7 - 2.2 412-9002.00-00020
2.2 - 2.7 412-9002.00-00025
2.7 - 3.2 412-9002.00-00030
3.2 - 3.7 412-9002.00-00035
2 socket cylinder screws M6x10 DIN 7984 and 2 spring washers DIN 7980 are included.
O-ring 24x2mm 200-1005.00-02420
Cover for cutout 30x14mm 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 292-0701.15-01530 01.112
30x15mm
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113
