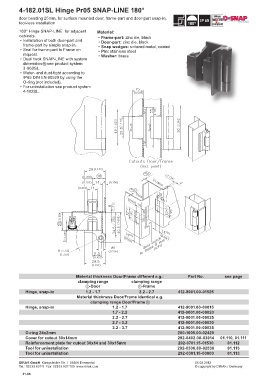

4-182.01SL Hinge Pr05 SNAP-LINE 180°

door bending 25mm, for surface mounted door, frame-part and door-part snap-in,
tool-less installation
180° Hinge SNAP-LINE for adjacent Material:
cabinets. • Frame-part: zinc die, black
• Installation of both door-part and • Door-part: zinc die, black
frame-part by simple snap-in. • Snap wedges: sintered metal, coated
• Seal for frame-part to Frame on • Pin: stainless steel
request. • Washer: brass
• Dual hook SNAP-LINE with system
dimension 5 see product system
3-960SL.
• Water- and dust-tight according to
IP65 DIN EN 60529 by using the
O-ring (not included).
• For uninstallation see product system
4-182SL.

Material thickness Door/Frame different e.g.: Part No. see page
clamping range clamping range
1-Door 1-Frame
Hinge, snap-in 1.2 - 1.7 2.2 - 2.7 412-8001.00-01525
Material thickness Door/Frame identical e.g.
clamping range Door/Frame 1
Hinge, snap-in 1.2 - 1.7 412-9001.00-00015
1.7 - 2.2 412-9001.00-00020
2.2 - 2.7 412-9001.00-00025
2.7 - 3.2 412-9001.00-00030
3.2 - 3.7 412-9001.00-00035
O-ring 24x2mm 200-1005.00-02420
Cover for cutout 30x14mm 292-0402.00-03014 01.110, 01.111
Reinforcement plate for cutout 30x14 and 30x15mm 292-0701.15-01530 01.112
Tool for uninstallation 292-0306.80-02530 01.113
Tool for uninstallation 292-0301.15-00000 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.86
