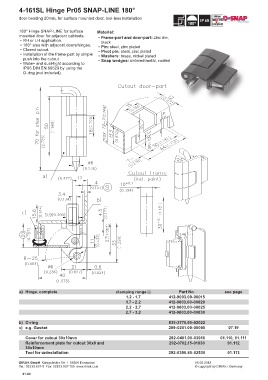

4-161SL Hinge Pr05 SNAP-LINE 180°

door bending 20mm, for surface mounted door, tool-less installation

180° Hinge SNAP-LINE for surface Material:
mounted door for adjacent cabinets. • Frame-part and door-part: zinc die,
• RH or LH application. black
• 180° also with adjacent doors/hinges. • Pin: steel, zinc plated
• Closed cutout. • Pivot pin: steel, zinc plated
• Installation of the frame-part by simple • Washers: brass, nickel plated
push into the cutout. • Snap wedges: sintered metal, coated
• Water- and dust-tight according to
IP65 DIN EN 60529 by using the
O-ring (not included).

a) Hinge, complete clamping range 1 Part No. see page
1.2 - 1.7 412-9003.00-00015
1.7 - 2.2 412-9003.00-00020
2.2 - 2.7 412-9003.00-00025
2.7 - 3.2 412-9003.00-00030

b) O-ring 839-3770.00-02022
c) e.g. Gasket 209-0201.00-00000 07.19

Cover for cutout 30x10mm 292-0401.00-03010 01.110, 01.111
Reinforcement plate for cutout 30x8 and 292-0702.15-01030 01.112
30x10mm
Tool for uninstallation 292-0306.80-02530 01.113

DIRAK GmbH Königsfelder Str. 1 58256 Ennepetal 06.02.2012
Tel.: 02333.837-0 Fax: 02333.837-100 www.dirak.com © copyright by DIRAK / Germany
01.84
