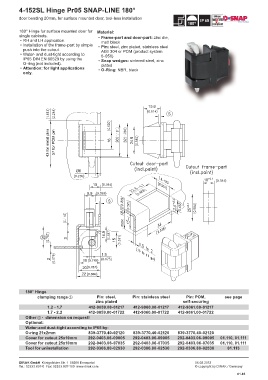

4-152SL Hinge Pr05 SNAP-LINE 180°

door bending 20mm, for surface mounted door, tool-less installation

180° Hinge for surface mounted door for Material:
single cabinets. • Frame-part and door-part: zinc die,
• RH and LH application. matt black
• Installation of the frame-part by simple • Pin: steel, zinc plated, stainless steel
push into the cutout. AISI 304 or POM (product system
• Water- and dust-tight according to 6-050)
IP65 DIN EN 60529 by using the • Snap wedges: sintered steel, zinc
O-ring (not included). plated
• Attention: for light applications • O-Ring: NBR, black
only.

180° Hinge
clamping range 1 Pin: steel, Pin: stainless steel Pin: POM, see page
zinc plated self-securing
1.2 - 1.7 412-9059.00-01217 412-9060.00-01217 412-9061.00-01217
1.7 - 2.2 412-9059.00-01722 412-9060.00-01722 412-9061.00-01722
Other 1 - dimension on request!
Optional:
Water-and dust-tight according to IP65 by:
O-ring 21x2mm 839-3770.40-02120 839-3770.40-02120 839-3770.40-02120
Cover for cutout 25x10mm 292-0403.06-09005 292-0403.06-09005 292-0403.06-09005 01.110, 01.111
Cover for cutout 25x10mm 292-0403.06-07035 292-0403.06-07035 292-0403.06-07035 01.110, 01.111
Tool for uninstallation 292-0306.80-02530 292-0306.80-02530 292-0306.80-02530 01.113
